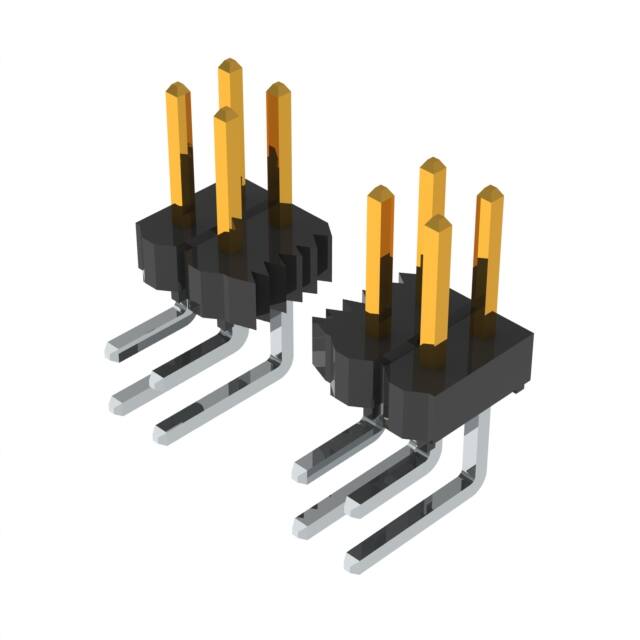

TSW-105-08-L-D-RA

Specifications

Contact Shape

Square

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL

Housing Color

Black

Montaj

Through Hole

Connector Type

Header

Max Voltage Rating Ac

450V

Radyasyon Dayanımı

No

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Mil Conformance

NO

Pozisyon Sayısı

10

Contact Materials

Phosphor Bronze

Contact Finish Post

Tin

Seri

TSW

Parça Durumu

Active

Body Breadth

0.1 inch

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Fabrika Tedarik Süresi

0 Weeks

Nominal Gerilim

550V

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Option

GENERAL PURPOSE

Akım Değeri

6.3A

Lead Pitch

2.54mm

Contact Length Post

0.090 2.29mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Max Current Rating

7.6A

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold
