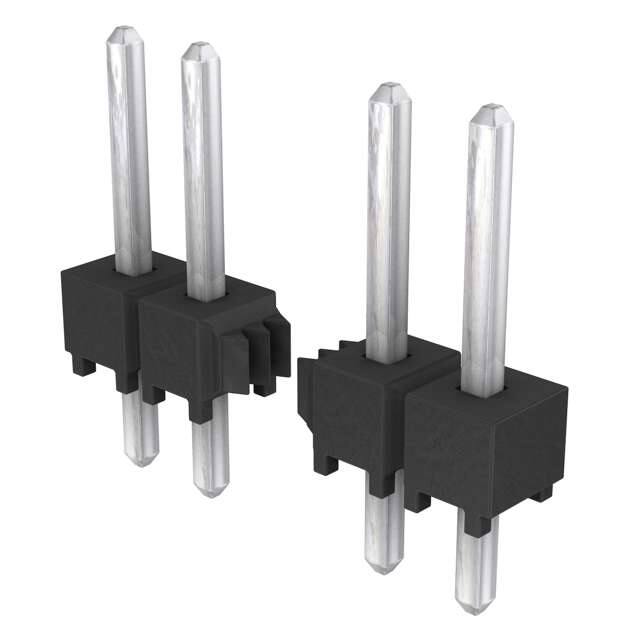

TSW-105-07-T-S

Specifications

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Ambalaj

Bulk

Genişlik

2.54mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Depth

2.54mm

Additional Feature

E.L.P.

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Max Current Rating

7.6A

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Tin

Uzunluk

12.7mm

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Sıra Sayısı

1

Number Of Pcb Rows

1

Filter Feature

NO

Shrouding

Unshrouded

Yayın Yılı

2005

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Overall Contact Length

0.430 10.92mm

Housing Color

Black

Montaj

Through Hole

Connector Type

Header

Fastening Type

Push-Pull
