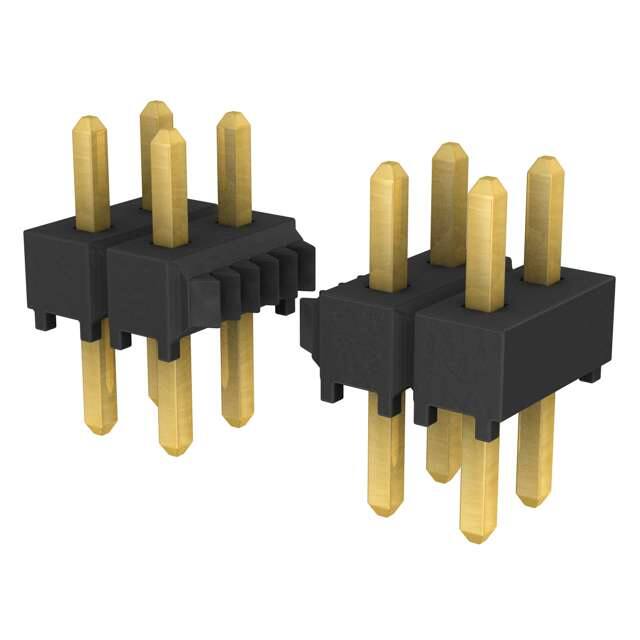

TSW-105-06-G-D

Specifications

Filter Feature

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Yayın Yılı

2005

Contact Type

Male Pin

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Overall Contact Length

0.300 7.62mm

Uzunluk

12.7mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Number Of Pcb Rows

2

Genişlik

5.08mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Depth

5.08mm

Additional Feature

E.L.P.

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.095 2.41mm

Max Current Rating

7.6A

Gender

Male

Contact Lengthmating

0.105 2.67mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Mating Contact Pitch

0.1 inch

Option

GENERAL PURPOSE

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

0 Weeks
