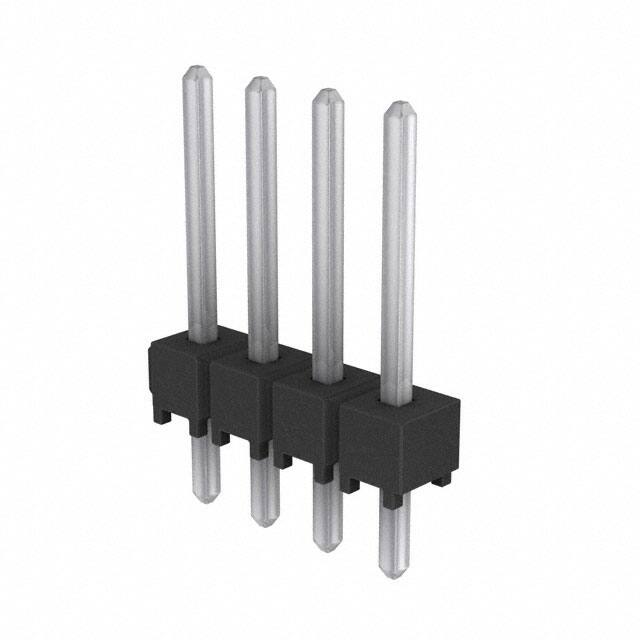

TSW-104-14-T-S

Specifications

Style

Board to Board or Cable

Mil Conformance

NO

Number Of Positions Loaded

All

Max Voltage Rating Ac

550V

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Housing Color

Black

Connector Type

Header

Montaj

Through Hole

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Fabrika Tedarik Süresi

0 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Mixed Contacts

NO

Parça Durumu

Active

Seri

TSW

Pozisyon Sayısı

4

Contact Materials

Phosphor Bronze

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Genişlik

2.54mm

Additional Feature

POLARISED

Depth

2.54mm

Max Current Rating

7.6A

Gender

Male

Contact Length Post

0.110 2.79mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Contact Lengthmating

0.320 8.13mm

Çalışma Sıcaklığı

-55°C~105°C

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Filter Feature

NO

Shrouding

Unshrouded

Yayın Yılı

2005
