Volume pricing
- 1+ pcs$0.33
- 10+ pcs$0.31
- 100+ pcs$0.30
- 500+ pcs$0.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

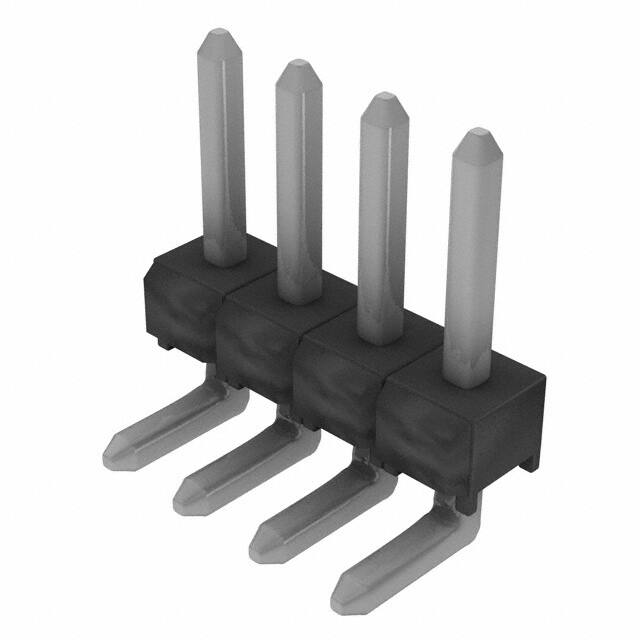

Specifications
- Din Conformance
- NO
- Fastening Type
- Push-Pull
- Contact Shape
- Square
- Reliability
- COMMERCIAL
- Housing Color
- Black
- Connector Type
- Header
- Montaj
- Through Hole
- Number Of Positions Loaded
- All
- Radyasyon Dayanımı
- No
- Max Voltage Rating Ac
- 450V
- Kurşunsuz Kodu
- yes
- Mil Conformance
- NO
- Style
- Board to Board or Cable
- Pozisyon Sayısı
- 4
- Contact Materials
- Phosphor Bronze
- Parça Durumu
- Active
- Seri
- TSW
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Orientation
- Right Angle
- Mixed Contacts
- NO
- Fabrika Tedarik Süresi
- 1 Weeks
- Reference Standard
- UL
- Pcb Contact Pattern
- RECTANGULAR
- Housing Material
- Polyester
- Material Flammability Rating
- UL94 V-0
- Option
- GENERAL PURPOSE
- Gender
- Male
- Max Current Rating
- 7.6A
- RoHS Durumu
- ROHS3 Compliant
- Lead Pitch
- 2.54mm
- Contact Length Post
- 0.090 2.29mm
- Contact Finish Mating
- Tin
- Contact Lengthmating
- 0.230 5.84mm
- Çalışma Sıcaklığı
- -55°C~105°C
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Terminal
- Solder
- Genişlik
- 2.54mm
- Ambalaj
- Bulk
- Depth
- 9.9mm
- Pitch Mating
- 0.100 2.54mm
