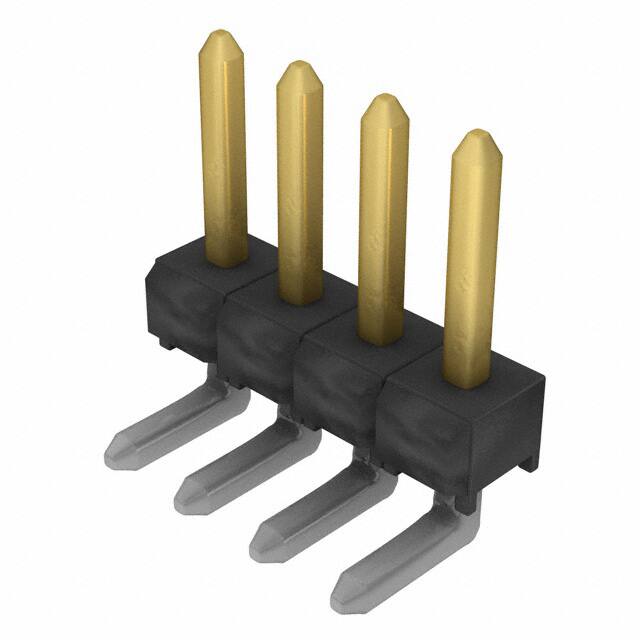

TSW-104-08-L-S-RA

Specifications

Gender

Male

Max Current Rating

7.6A

Contact Length Post

0.090 2.29mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Genişlik

2.54mm

Additional Feature

ROHS COMPLIANT

Depth

9.9mm

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Akım Değeri

7.6A

Yayın Yılı

2005

Insulation Height

0.119 3.02mm

Contact Type

Male Pin

Filter Feature

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Sıra Sayısı

1

Uzunluk

10.16mm

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Number Of Positions Loaded

All

Max Voltage Rating Ac

450V

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes
