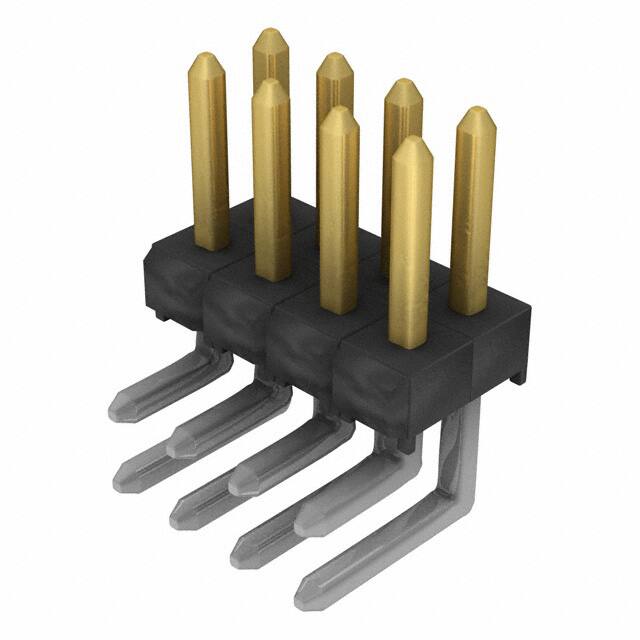

TSW-104-08-L-D-RA

Specifications

Yayın Yılı

2005

Insulation Height

0.219 5.56mm

Contact Type

Male Pin

Filter Feature

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

2

Number Of Pcb Rows

2

Uzunluk

10.16mm

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Contact Length Post

0.090 2.29mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Max Current Rating

7.6A

Gender

Male

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Ambalaj

Bulk

Genişlik

2.54mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Depth

12.44mm

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Option

GENERAL PURPOSE

Akım Değeri

7.6A

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Plating Thickness

10μin
