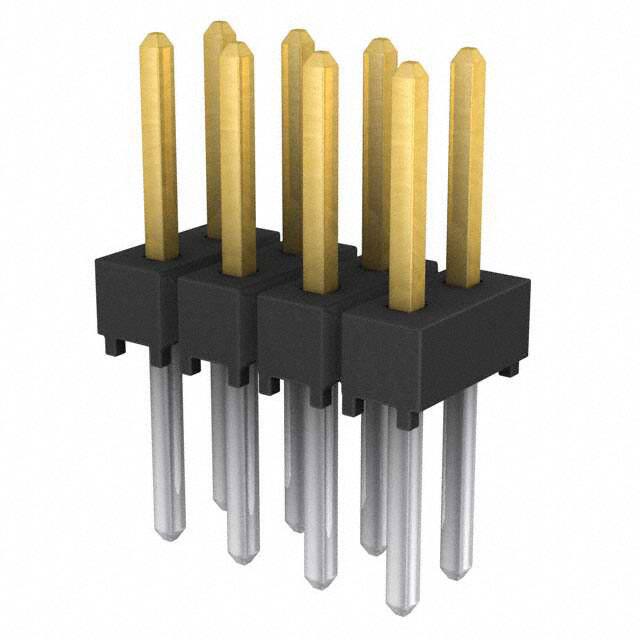

TSW-104-08-L-D

Specifications

Number Of Pcb Rows

2

Sıra Sayısı

2

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Pitch Mating

0.100 2.54mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Iec Conformance

NO

Number Of Conductors

ONE

Uzunluk

10.2mm

Overall Contact Length

0.530 13.46mm

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Yayın Yılı

2005

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Akım Değeri

7.6A

Option

GENERAL PURPOSE

Housing Material

Plastic

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.200 5.08mm

Additional Feature

E.L.P.

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Yükseklik

2.54mm

Genişlik

5.08mm

Ambalaj

Bulk

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

8

Parça Durumu

Active
