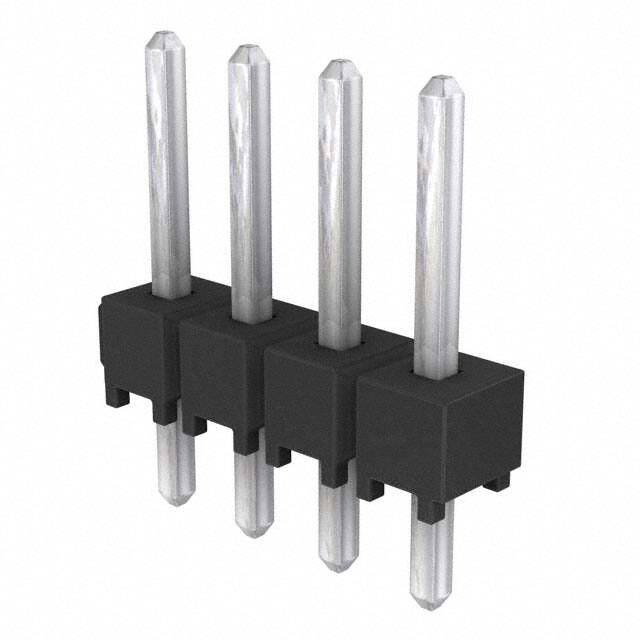

TSW-104-07-T-S

Specifications

Gender

Male

Max Current Rating

7.6A

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.230 5.84mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Genişlik

2.54mm

Ambalaj

Bulk

Additional Feature

E.L.P.

Depth

2.54mm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Yayın Yılı

2005

Overall Contact Length

0.430 10.92mm

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Filter Feature

NO

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Sıra Sayısı

1

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Uzunluk

10.16mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Iec Conformance

NO

Number Of Conductors

ONE

Number Of Positions Loaded

All

Radyasyon Dayanımı

No

Max Voltage Rating Ac

550V

Kurşunsuz Kodu

yes

Mil Conformance

NO
