Volume pricing
- 1+ pcs$1.32
- 10+ pcs$1.24
- 100+ pcs$1.17
- 500+ pcs$1.11
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

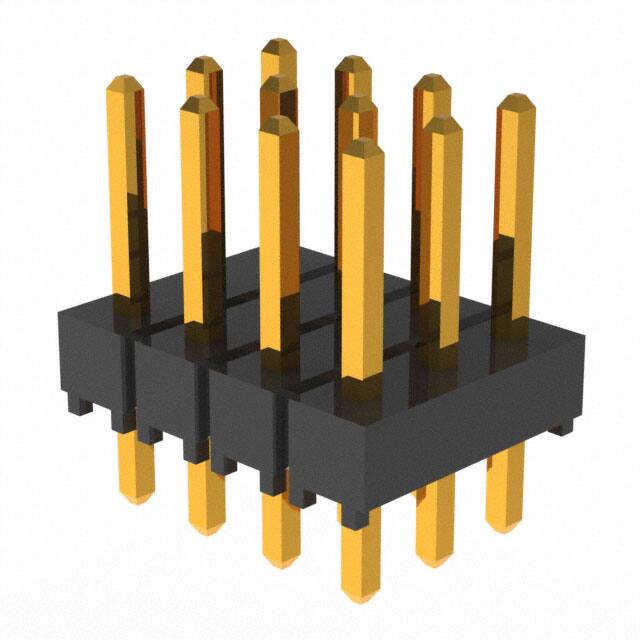

Specifications
- Housing Color
- Black
- Connector Type
- Header
- Montaj
- Through Hole
- Contact Shape
- Square
- Fastening Type
- Push-Pull
- Din Conformance
- NO
- Reliability
- COMMERCIAL
- Style
- Board to Board or Cable
- Mil Conformance
- NO
- Number Of Positions Loaded
- All
- Max Voltage Rating Ac
- 550V
- Row Spacing Mating
- 0.100 (2.54mm)
- Radyasyon Dayanımı
- No
- Kurşunsuz Kodu
- yes
- Body Breadth
- 0.1 inch
- Parça Durumu
- Active
- Seri
- TSW
- Pozisyon Sayısı
- 12
- Contact Materials
- Phosphor Bronze
- Fabrika Tedarik Süresi
- 3 Weeks
- Plating Thickness
- 10μin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Orientation
- Vertical
- Mixed Contacts
- NO
- Mating Contact Pitch
- 0.1 inch
- Housing Material
- Polyester
- Material Flammability Rating
- UL94 V-0
- Option
- GENERAL PURPOSE
- Pcb Contact Pattern
- RECTANGULAR
- Reference Standard
- UL
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Yükseklik
- 8.64mm
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Terminal
- Solder
- Ambalaj
- Bulk
- Depth
- 7.62mm
- Gender
- Male
- Max Current Rating
- 7.6A
- Contact Length Post
- 0.100 2.54mm
- Lead Pitch
- 2.54mm
