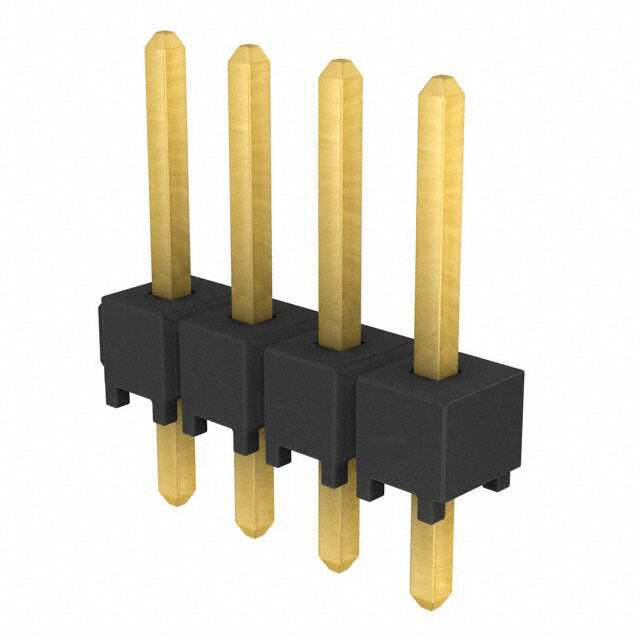

TSW-104-07-G-S

Specifications

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Fabrika Tedarik Süresi

0 Weeks

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

4

Parça Durumu

Active

Seri

TSW

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Radyasyon Dayanımı

No

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Ac

550V

Mil Conformance

NO

Style

Board to Board or Cable

Reliability

COMMERCIAL

Din Conformance

NO

Contact Shape

Square

Fastening Type

Push-Pull

Connector Type

Header

Montaj

Through Hole

Housing Color

Black

Overall Contact Length

0.430 10.92mm

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Yayın Yılı

2005

Shrouding

Unshrouded

Contact Finish Thickness Mating

10.0μin 0.25μm

Filter Feature

NO

Number Of Pcb Rows

1

Sıra Sayısı

1

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Pitch Mating

0.100 2.54mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Iec Conformance

NO

Number Of Conductors

ONE

Uzunluk

10.16mm

Contact Finish Mating

Gold
