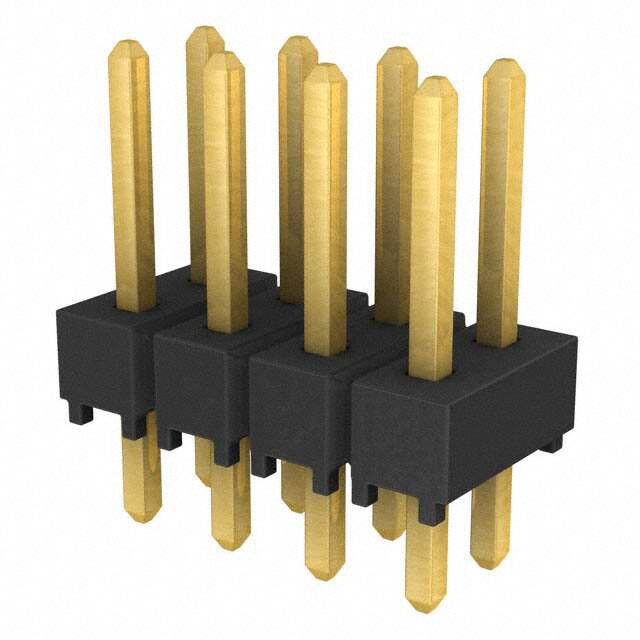

TSW-104-07-G-D

Specifications

Reliability

COMMERCIAL

Contact Shape

Square

Fastening Type

Push-Pull

Din Conformance

NO

Montaj

Through Hole

Connector Type

Header

Housing Color

Black

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

550V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.100 (2.54mm)

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Style

Board to Board or Cable

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

8

Seri

TSW

Parça Durumu

Active

Body Breadth

0.1 inch

Mixed Contacts

NO

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Plating Thickness

10μin

Fabrika Tedarik Süresi

0 Weeks

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Gold

Lead Pitch

2.54mm

Contact Length Post

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Max Current Rating

7.6A

Depth

5.08mm
