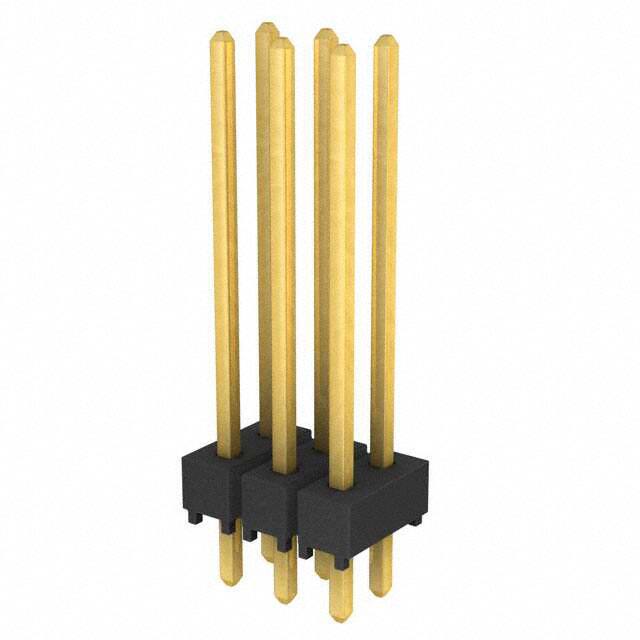

TSW-103-17-G-D

Specifications

Yayın Yılı

2005

Overall Contact Length

0.830 21.08mm

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Filter Feature

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Uzunluk

7.62mm

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Iec Conformance

NO

Gender

Male

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.110 2.79mm

Contact Finish Mating

Gold

Contact Lengthmating

0.620 15.75mm

Çalışma Sıcaklığı

-55°C~125°C

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Yükseklik

2.54mm

Genişlik

5.08mm

Ambalaj

Bulk

Additional Feature

E.L.P.

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Fabrika Tedarik Süresi

1 Weeks

Pozisyon Sayısı

6

Contact Materials

Phosphor Bronze

Parça Durumu

Active

Seri

TSW

Number Of Positions Loaded

All
