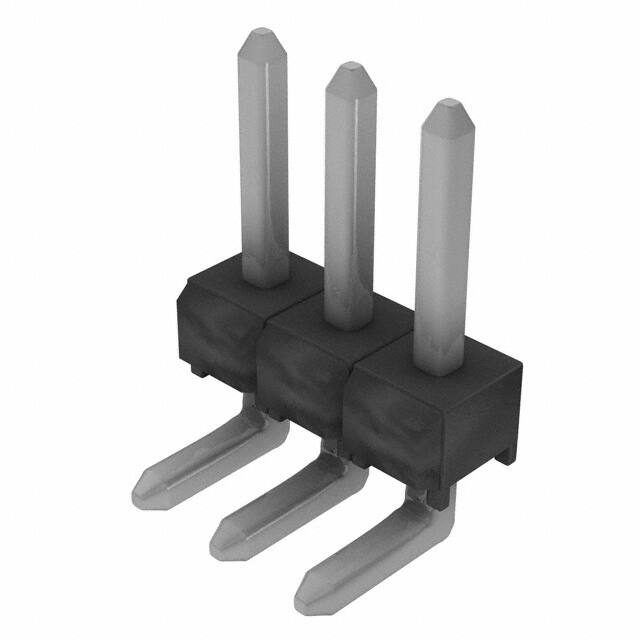

TSW-103-08-T-S-RA

Specifications

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Connector Type

Header

Housing Color

Black

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

450V

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Style

Board to Board or Cable

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

3

Seri

TSW

Parça Durumu

Active

Mixed Contacts

NO

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

0 Weeks

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Tin

Lead Pitch

2.54mm

Contact Length Post

0.090 2.29mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Max Current Rating

7.6A

Depth

9.9mm

Additional Feature

POLARISED

Ambalaj

Bulk

Genişlik

2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Pitch Mating

0.100 2.54mm
