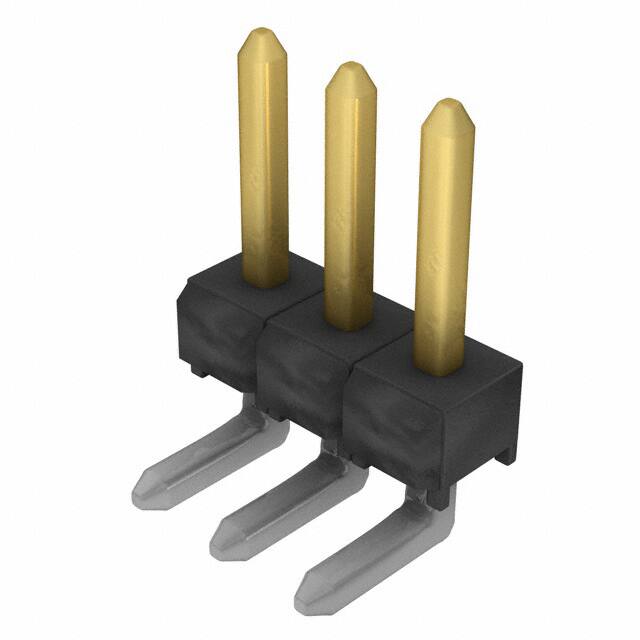

TSW-103-08-L-S-RA

Specifications

Number Of Pcb Rows

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Uzunluk

7.62mm

Insulation Height

0.119 3.02mm

Contact Type

Male Pin

Yayın Yılı

2005

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL, CSA

Option

GENERAL PURPOSE

Akım Değeri

7.6A

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Gender

Male

Max Current Rating

7.6A

Lead Pitch

2.54mm

Contact Length Post

0.090 2.29mm

RoHS Durumu

ROHS3 Compliant

Additional Feature

ROHS COMPLIANT

Depth

9.9mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Insulation Resistance

50000000000Ohm

Genişlik

2.54mm

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

3

Parça Durumu

Active
