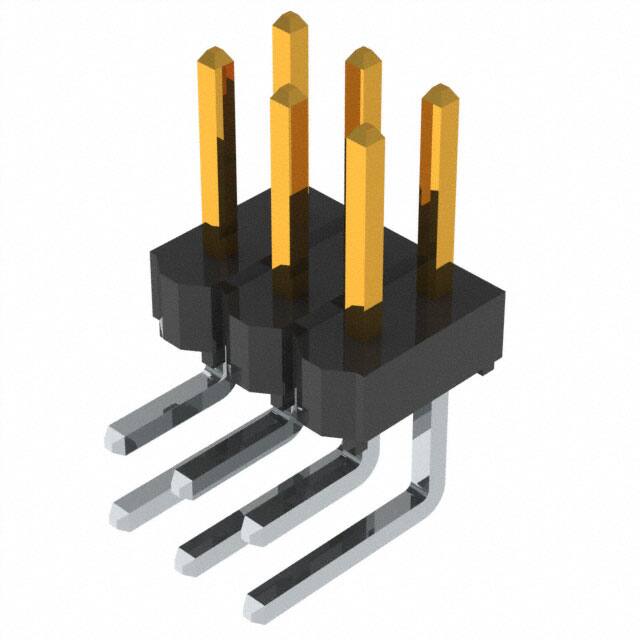

TSW-103-08-L-D-RA

Specifications

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

ECCN Kodu

EAR99

Uzunluk

7.62mm

Number Of Pcb Rows

2

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

2

Pcb Contact Row Spacing

5.08 mm

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Insulation Height

0.219 5.56mm

Contact Type

Male Pin

Yayın Yılı

2005

Option

GENERAL PURPOSE

Akım Değeri

7.6A

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Additional Feature

ROHS COMPLIANT

Depth

12.44mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Genişlik

2.54mm

Contact Finish Mating

Gold

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

7.6A

Gender

Male

Contact Length Post

0.090 2.29mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active
