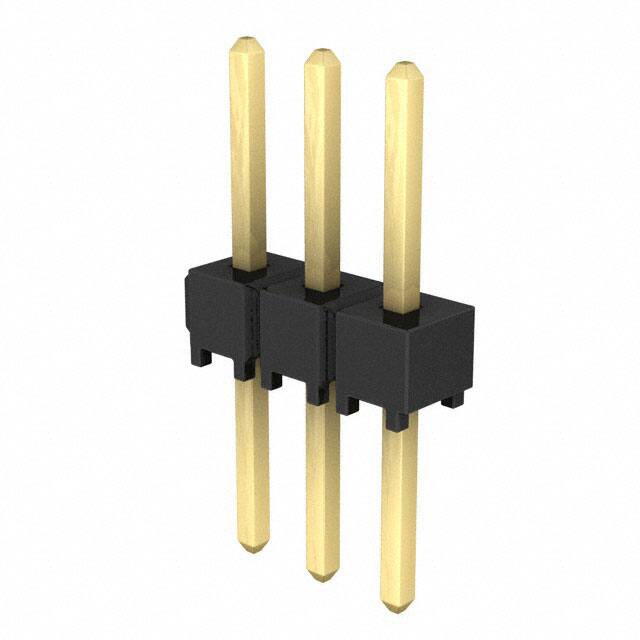

TSW-103-08-G-S

Specifications

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Gender

Male

Max Current Rating

7.6A

Lead Pitch

2.54mm

Contact Length Post

0.200 5.08mm

RoHS Durumu

ROHS3 Compliant

Additional Feature

E.L.P.

Depth

2.54mm

Contact Finish Thickness Post

3.00μin 0.076μm

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Ambalaj

Bulk

Genişlik

2.54mm

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Reach Svhc

No SVHC

Sıra Sayısı

1

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Uzunluk

7.62mm

Overall Contact Length

0.530 13.46mm

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Yayın Yılı

2005

Shrouding

Unshrouded

Contact Finish Thickness Mating

10.0μin 0.25μm

Filter Feature

NO

Reliability

COMMERCIAL

Fastening Type

Push-Pull
