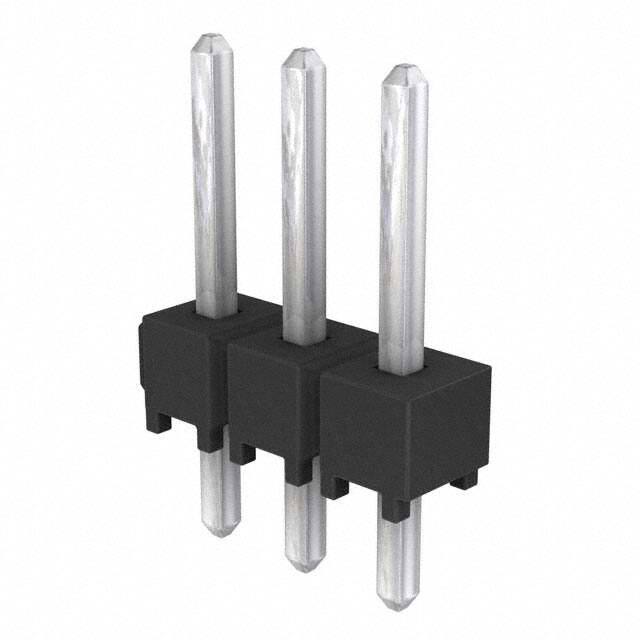

TSW-103-07-T-S

Specifications

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Gender

Male

Max Current Rating

7.6A

Lead Pitch

2.54mm

Contact Length Post

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~105°C

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Ambalaj

Bulk

Genişlik

2.54mm

Additional Feature

E.L.P.

Depth

2.54mm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Uzunluk

7.62mm

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Yayın Yılı

2005

Overall Contact Length

0.430 10.92mm

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Filter Feature

NO

Shrouding

Unshrouded

Contact Shape

Square

Fastening Type

Push-Pull

Din Conformance

NO

Reliability

COMMERCIAL
