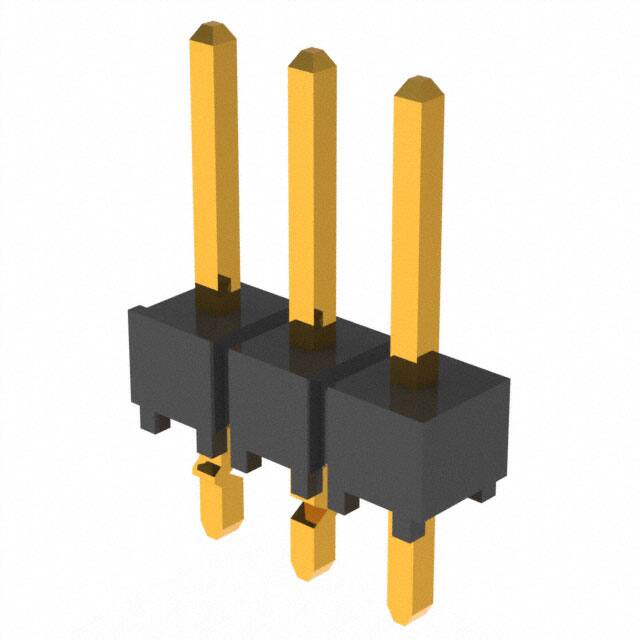

TSW-103-07-G-S-LL

Specifications

Reliability

COMMERCIAL

Din Conformance

NO

Fastening Type

Push-Pull

Contact Shape

Square

Connector Type

Header

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Radyasyon Dayanımı

No

Max Voltage Rating Ac

550V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mil Conformance

NO

Style

Board to Board or Cable

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

3

Parça Durumu

Active

Body Breadth

0.098 inch

Seri

TSW

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Fabrika Tedarik Süresi

6 Weeks

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Option

GENERAL PURPOSE

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Gender

Male

Max Current Rating

7.6A

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

Additional Feature

E.L.P.

Depth

2.54mm

Terminal

Kinked Pin, Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Finish Thickness Post

3.00μin 0.076μm

Ambalaj

Bulk
