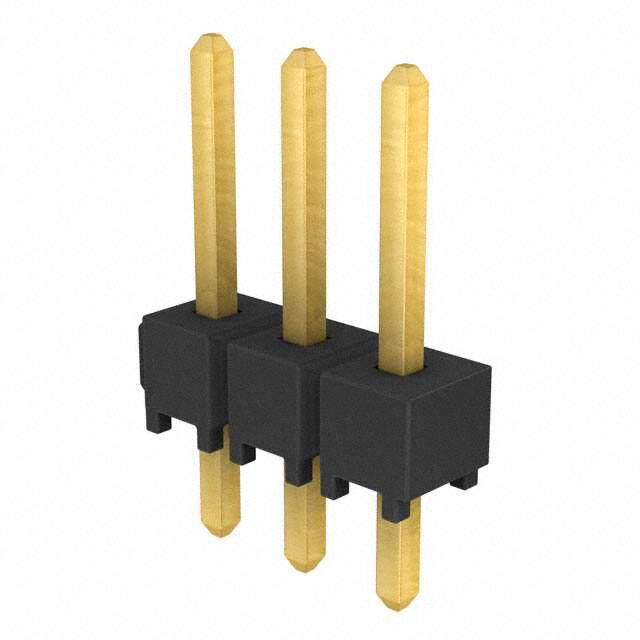

TSW-103-07-G-S

Specifications

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Vertical

Fabrika Tedarik Süresi

0 Weeks

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

3

Parça Durumu

Active

Seri

TSW

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Ac

550V

Radyasyon Dayanımı

No

Style

Board to Board or Cable

Mil Conformance

NO

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Connector Type

Header

Montaj

Through Hole

Housing Color

Black

Overall Contact Length

0.430 10.92mm

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Yayın Yılı

2005

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Number Of Pcb Rows

1

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Sıra Sayısı

1

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Uzunluk

7.62mm
