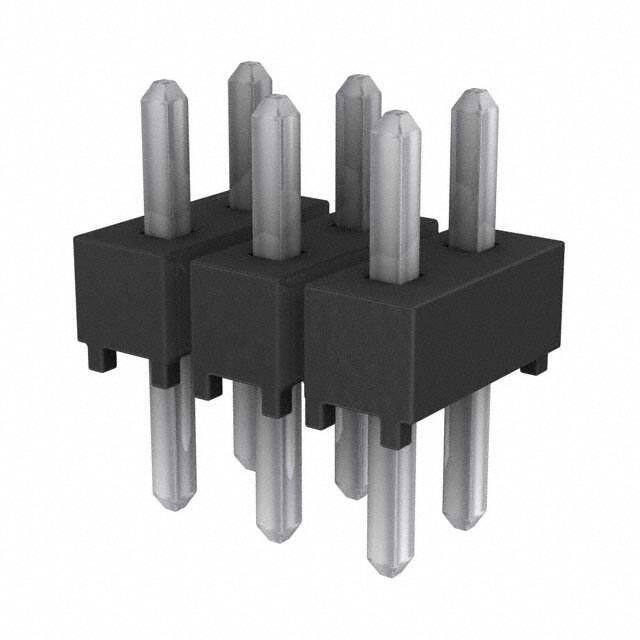

TSW-103-06-T-D

Specifications

Iec Conformance

NO

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Uzunluk

7.62mm

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Shrouding

Unshrouded

Filter Feature

NO

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Overall Contact Length

0.300 7.62mm

Yayın Yılı

2005

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Depth

5.08mm

Additional Feature

E.L.P.

Genişlik

5.08mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.105 2.67mm

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.095 2.41mm

Lead Pitch

2.54mm

Gender

Male

Max Current Rating

7.6A

Seri

TSW

Parça Durumu

Discontinued

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

6

Fabrika Tedarik Süresi

1 Weeks

Mixed Contacts

NO

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole
