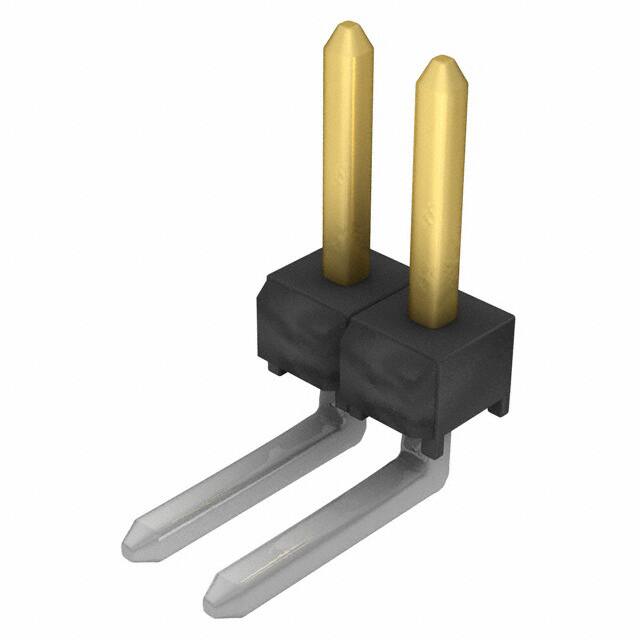

TSW-102-22-L-S-RA

Specifications

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz

Lead Free

Pitch Mating

0.100 2.54mm

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Number Of Pcb Rows

1

Filter Feature

NO

Shrouding

Unshrouded

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2005

Insulation Height

0.119 3.02mm

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Ambalaj

Bulk

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Length Post

0.190 4.83mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Contact Finish Post

Tin

Seri

TSW

Parça Durumu

Active

Pozisyon Sayısı

2

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

3 Weeks

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Montaj

Through Hole
