Specifications

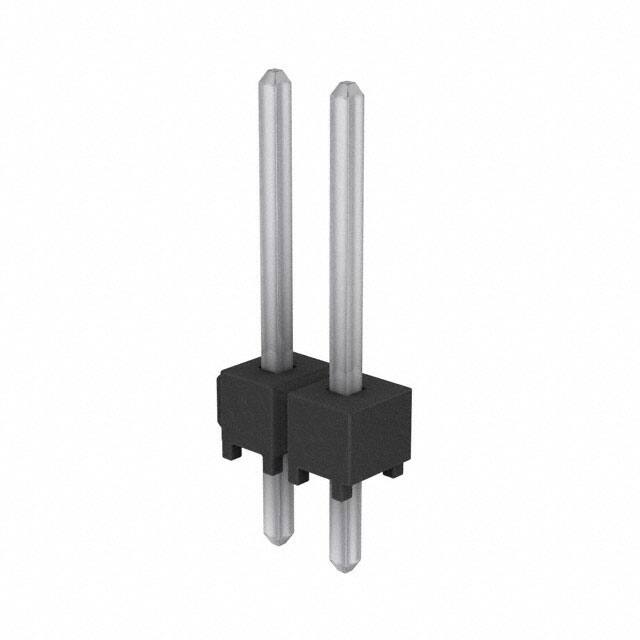

- Connector Type
- Header
- Montaj
- Through Hole
- Housing Color
- Black
- Reliability
- COMMERCIAL
- Contact Shape
- Square
- Fastening Type
- Push-Pull
- Din Conformance
- NO
- Style
- Board to Board or Cable
- Mil Conformance
- NO
- Kurşunsuz Kodu
- yes
- Number Of Positions Loaded
- All
- Max Voltage Rating Ac
- 550V
- Radyasyon Dayanımı
- No
- Parça Durumu
- Active
- Seri
- TSW
- Contact Materials
- Phosphor Bronze
- Pozisyon Sayısı
- 2
- Fabrika Tedarik Süresi
- 1 Weeks
- Mixed Contacts
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Orientation
- Straight
- Option
- GENERAL PURPOSE
- Housing Material
- Polyester
- Material Flammability Rating
- UL94 V-0
- Pcb Contact Pattern
- RECTANGULAR
- Reference Standard
- UL
- Additional Feature
- E.L.P.
- Depth
- 2.54mm
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Terminal
- Solder
- Ambalaj
- Bulk
- Genişlik
- 2.54mm
- Contact Finish Mating
- Tin
- Çalışma Sıcaklığı
- -55°C~105°C
- Contact Lengthmating
- 0.320 8.13mm
- Gender
- Male
- Max Current Rating
- 7.6A
- Lead Pitch
- 2.54mm
- Contact Length Post
- 0.110 2.79mm
- RoHS Durumu
- ROHS3 Compliant
