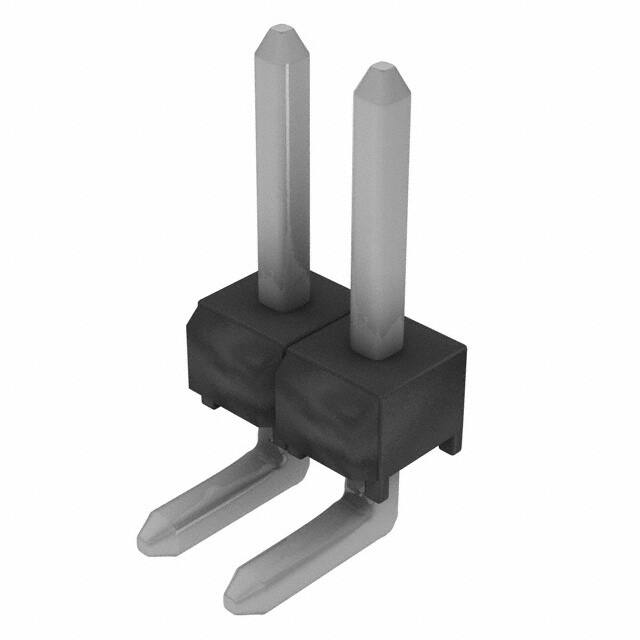

TSW-102-08-T-S-RA

Specifications

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.090 2.29mm

Lead Pitch

2.54mm

Max Current Rating

7.6A

Gender

Male

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Tin

Genişlik

2.54mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Depth

9.9mm

Additional Feature

ROHS COMPLIANT

Pitch Mating

0.100 2.54mm

Sıra Sayısı

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Uzunluk

5.08mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.119 3.02mm

Filter Feature

NO

Shrouding

Unshrouded

Din Conformance

NO

Contact Shape

Square

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Housing Color

Black

Connector Type

Header
