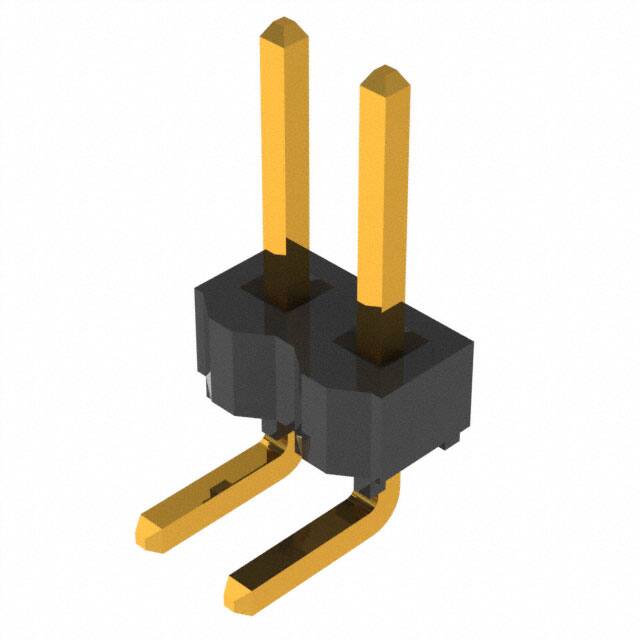

TSW-102-08-G-S-RA

Specifications

Filter Feature

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.119 3.02mm

Uzunluk

5.08mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Sıra Sayısı

1

JESD-609 Kodu

e4

Reach Svhc

No SVHC

Number Of Pcb Rows

1

Genişlik

2.54mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Depth

9.9mm

Additional Feature

ROHS COMPLIANT

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.090 2.29mm

Gender

Male

Max Current Rating

7.6A

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Option

GENERAL PURPOSE

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

1 Weeks

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO
