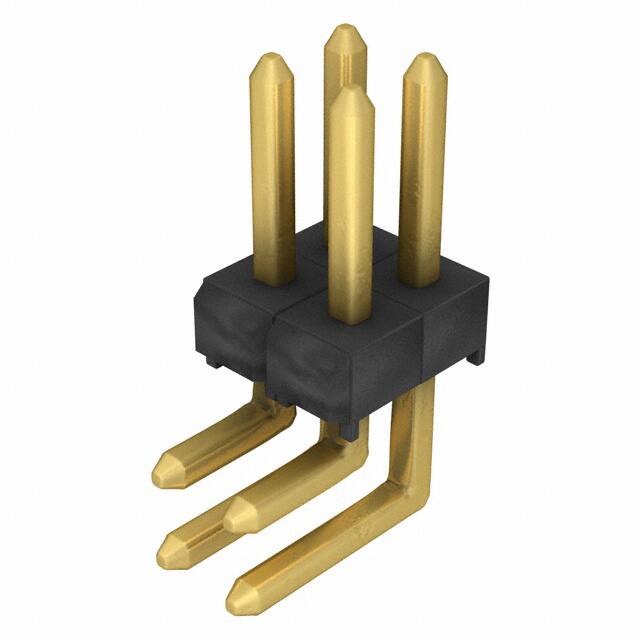

TSW-102-08-G-D-RA

Specifications

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.090 2.29mm

Lead Pitch

2.54mm

Gender

Male

Max Current Rating

7.6A

Depth

12.44mm

Genişlik

2.54mm

Ambalaj

Bulk

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Yükseklik

5.69mm

Contact Finish Thickness Post

3.00μin 0.076μm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Mating Contact Pitch

0.1 inch

Contact Type

Male Pin

Insulation Height

0.219 5.56mm

Yayın Yılı

2005

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Sıra Sayısı

2

JESD-609 Kodu

e4

Reach Svhc

No SVHC

Number Of Pcb Rows

2

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Uzunluk

5.08mm

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Row Spacing Mating

0.100 (2.54mm)
