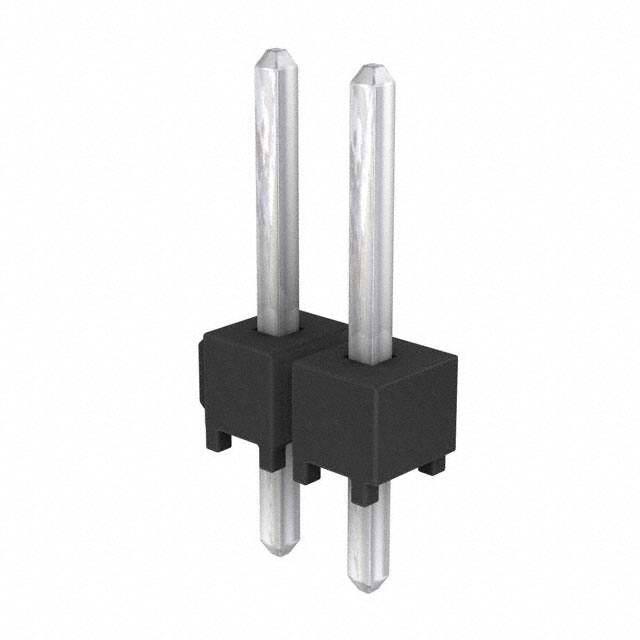

TSW-102-07-T-S

Specifications

Akım Değeri

6.3A

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Depth

2.54mm

Additional Feature

E.L.P.

Genişlik

2.54mm

Ambalaj

Bulk

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Yükseklik

8.64mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

Max Current Rating

7.6A

Gender

Male

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Uzunluk

5.08mm

Sıra Sayısı

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Shrouding

Unshrouded

Filter Feature

NO

Contact Type

Male Pin

Ul Flammability Code

94V-0

Insulation Height

0.100 2.54mm

Overall Contact Length

0.430 10.92mm

Yayın Yılı

2005

Montaj

Through Hole

Connector Type

Header
