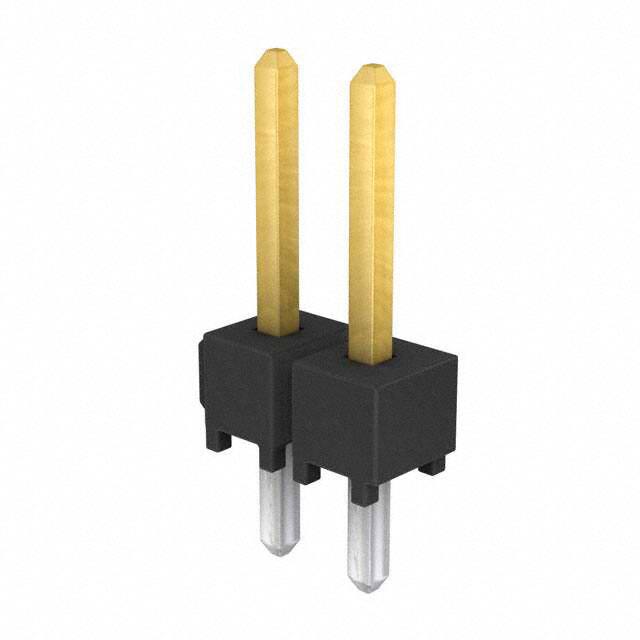

TSW-102-07-L-S

Specifications

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Uzunluk

5.08mm

Insulation Height

0.100 2.54mm

Ul Flammability Code

94V-0

Contact Type

Male Pin

Overall Contact Length

0.430 10.92mm

Yayın Yılı

2005

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Akım Değeri

7.6A

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Max Current Rating

7.6A

Gender

Male

Depth

2.54mm

Additional Feature

E.L.P.

Ambalaj

Bulk

Genişlik

2.54mm

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

2
