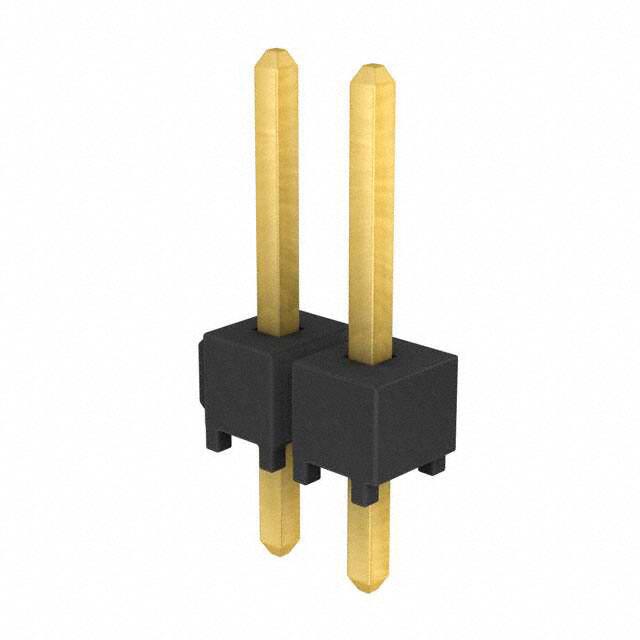

TSW-102-07-G-S

Specifications

Mil Conformance

NO

Style

Board to Board or Cable

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Ac

550V

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Housing Color

Black

Montaj

Through Hole

Connector Type

Header

Din Conformance

NO

Contact Shape

Square

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

0 Weeks

Nominal Gerilim

550V

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Seri

TSW

Parça Durumu

Active

Pozisyon Sayısı

2

Contact Materials

Phosphor Bronze

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Yükseklik

8.71mm

Depth

2.54mm

Additional Feature

E.L.P.

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

Max Current Rating

7.6A

Gender

Male

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Akım Değeri

6.3A
