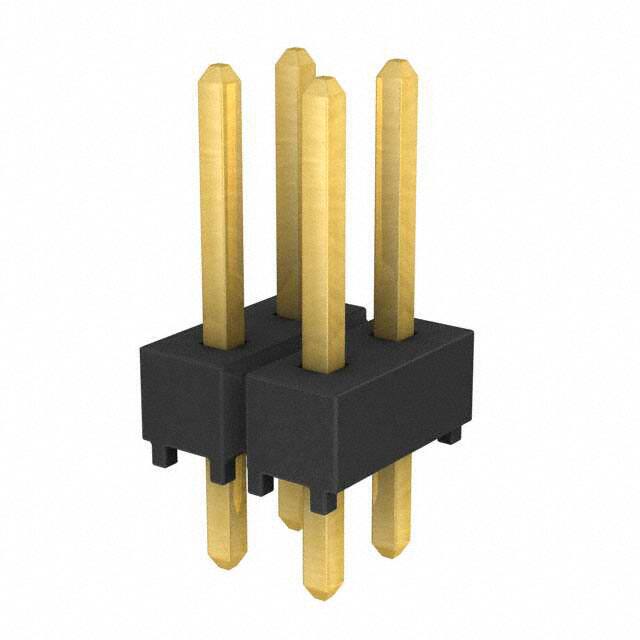

TSW-102-07-G-D

Specifications

Reliability

COMMERCIAL

Contact Shape

Square

Fastening Type

Push-Pull

Din Conformance

NO

Connector Type

Header

Montaj

Through Hole

Housing Color

Black

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating Ac

550V

Row Spacing Mating

0.100 (2.54mm)

Radyasyon Dayanımı

No

Style

Board to Board or Cable

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

4

Parça Durumu

Active

Body Breadth

0.1 inch

Seri

TSW

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Fabrika Tedarik Süresi

0 Weeks

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

7.6A

Gender

Male

Contact Length Post

0.100 2.54mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Additional Feature

E.L.P.
