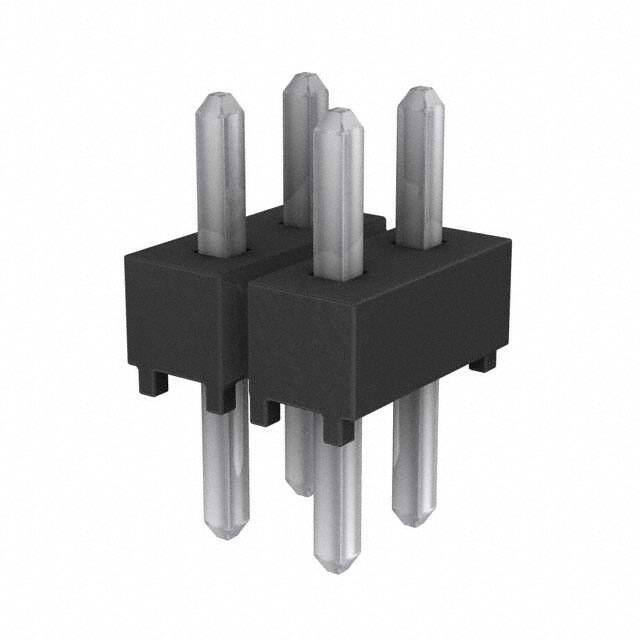

TSW-102-06-T-D

Specifications

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.105 2.67mm

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Contact Length Post

0.095 2.41mm

Lead Pitch

2.54mm

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Row Spacing Mating

0.100 (2.54mm)

Gender

Male

Number Of Positions Loaded

All

Additional Feature

E.L.P.

Style

Board to Board or Cable

Mil Conformance

NO

Ambalaj

Bulk

Genişlik

5.08mm

Yükseklik

2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Shape

Square

Fastening Type

Push-Pull

Din Conformance

NO

Montaj

Through Hole

Connector Type

Header

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Color

Black

Housing Material

Plastic

Mixed Contacts

NO

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Overall Contact Length

0.300 7.62mm

Yayın Yılı

2005

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Unshrouded

Filter Feature

NO

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Sıra Sayısı

2
