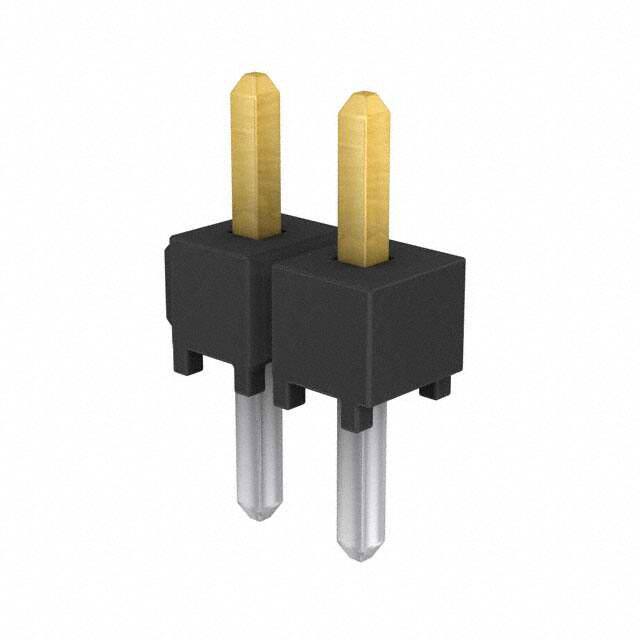

TSW-102-05-F-S

Specifications

Kurşunsuz Kodu

yes

Max Voltage Rating Ac

550V

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Style

Board to Board or Cable

Mil Conformance

NO

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Connector Type

Header

Mixed Contacts

NO

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

3 Weeks

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

2

Seri

TSW

Parça Durumu

Active

Contact Finish Post

Tin

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.105 2.67mm

Contact Finish Mating

Gold

Lead Pitch

2.54mm

Contact Length Post

0.130 3.30mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Max Current Rating

7.6A

Depth

2.54mm

Additional Feature

E.L.P.

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Insulation Height

0.100 2.54mm
