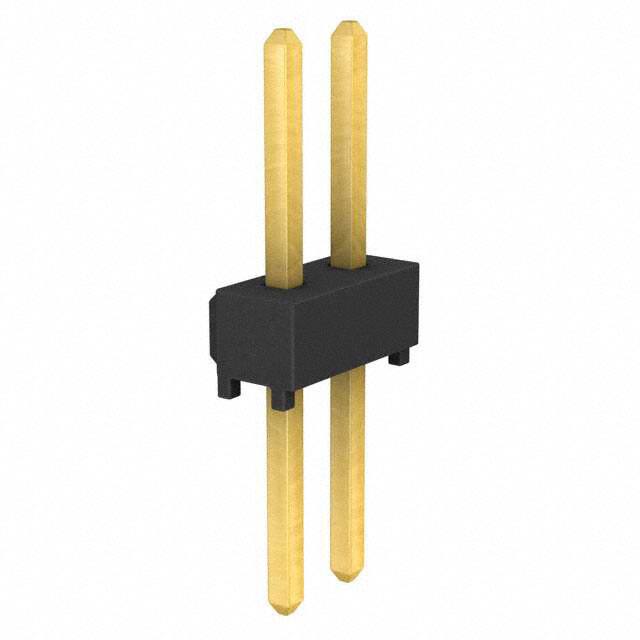

TSW-101-26-G-D

Specifications

Plating Thickness

10μin

Mixed Contacts

NO

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

TSW

Parça Durumu

Active

Body Breadth

0.1 inch

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

2

Mil Conformance

NO

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Row Spacing Mating

0.100 (2.54mm)

Max Voltage Rating Ac

550V

Number Of Positions Loaded

All

Montaj

Through Hole

Connector Type

Header

Housing Color

Black

Reliability

COMMERCIAL

Din Conformance

NO

Fastening Type

Push-Pull

Contact Shape

Square

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Filter Feature

NO

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Overall Contact Length

0.456 11.58mm

Yayın Yılı

2005

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Uzunluk

2.54mm

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e4

Number Of Pcb Rows

2

Depth

5.08mm

Genişlik

5.08mm
