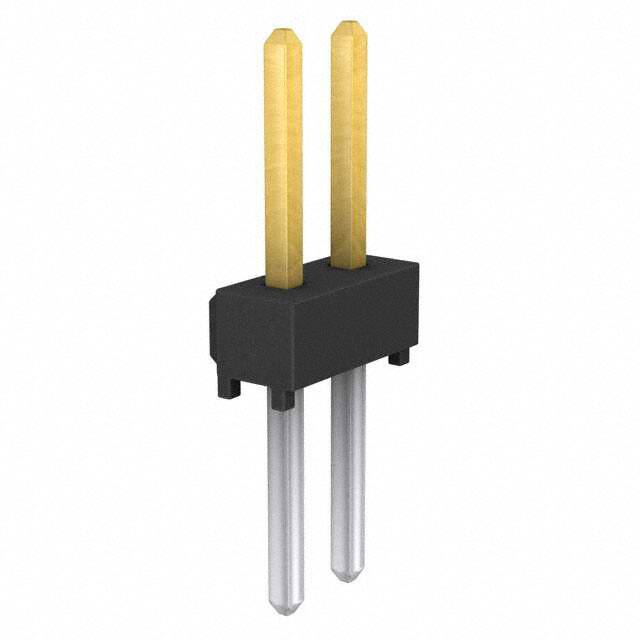

TSW-101-08-L-D

Specifications

Overall Contact Length

0.530 13.46mm

Insulation Height

0.100 2.54mm

Ul Flammability Code

94V-0

Contact Type

Male Pin

Yayın Yılı

2005

Shrouding

Unshrouded

Contact Finish Thickness Mating

10.0μin 0.25μm

Filter Feature

NO

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Sıra Sayısı

2

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Uzunluk

2.54mm

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Gender

Male

Max Current Rating

7.6A

Lead Pitch

2.54mm

Contact Length Post

0.200 5.08mm

RoHS Durumu

ROHS3 Compliant

Depth

5.08mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Ambalaj

Bulk

Genişlik

5.08mm

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Mating Contact Pitch

0.1 inch

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Plating Thickness

10μin
