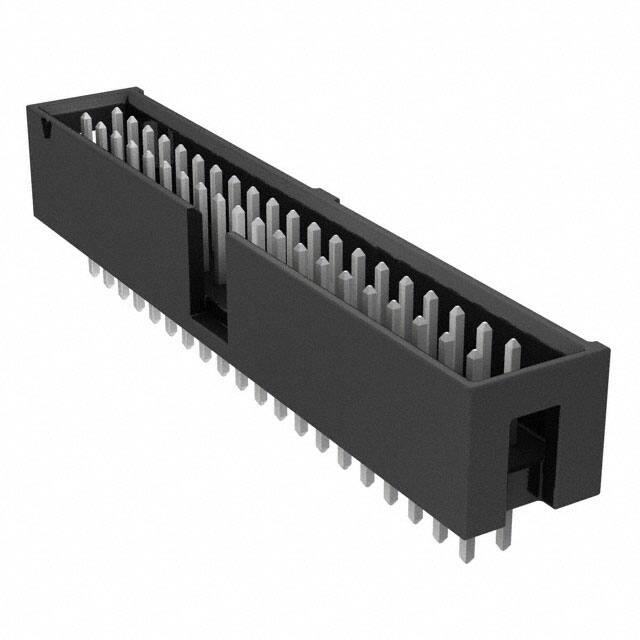

TST-120-01-T-D

Specifications

Mil Conformance

NO

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Insulation Height

0.350 8.89mm

Montaj

Through Hole

Number Of Positions Loaded

All

Reference Standard

UL

Ul Flammability Code

94V-0

Style

Board to Cable/Wire

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Yayın Yılı

2003

Kurşunsuz Kodu

yes

Seri

Flex Stack, TST

Pitch Mating

0.100 2.54mm

Özellikler

Keying Slot

Contact Shape

Square

Fastening Type

Push-Pull

Max Current Rating

3A

Iec Conformance

NO

JESD-609 Kodu

e3

Ambalaj

Tube

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Option

GENERAL PURPOSE

Insulation Resistance

5000000000Ohm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Tin

Pozisyon Sayısı

40

Housing Material

Polyester

Fabrika Tedarik Süresi

3 Weeks

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~105°C
