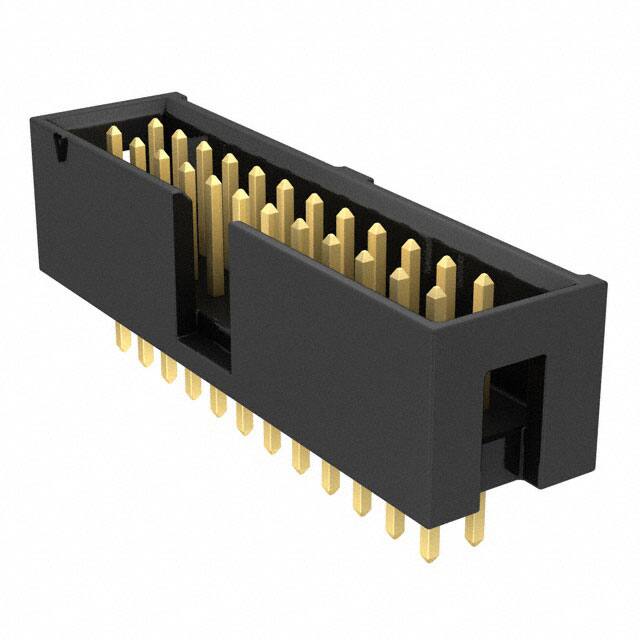

TST-112-01-G-D

Specifications

Filter Feature

NO

Current Rating Amps

3.4A per Contact

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Height

0.350 8.89mm

Contact Materials

Phosphor Bronze

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mil Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Iec Conformance

NO

JESD-609 Kodu

e4

Fastening Type

Push-Pull

Contact Shape

Square

Özellikler

Keying Slot

Pitch Mating

0.100 2.54mm

Seri

Flex Stack, TST

Kurşunsuz Kodu

yes

Yayın Yılı

2000

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polyester

Pozisyon Sayısı

24

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Din Conformance

NO

Contact Finish Thickness Mating

10.0μin 0.25μm

Option

GENERAL PURPOSE

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Housing Color

Black

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Mixed Contacts

NO

Montaj Tipi

Through Hole

Sıra Sayısı

2
