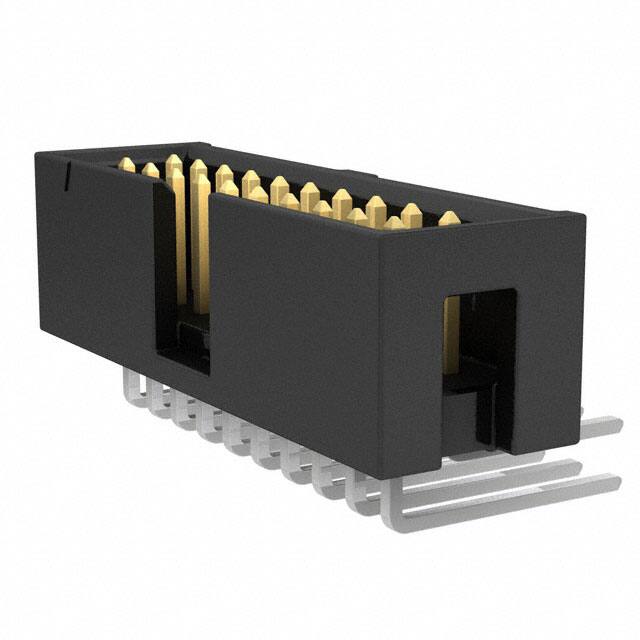

TST-110-04-L-D-RA

Specifications

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Din Conformance

NO

Housing Material

Polyester

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

20

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Housing Color

Black

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Option

GENERAL PURPOSE

Depth

12.32mm

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.250 6.35mm

Sıra Sayısı

2

Mixed Contacts

NO

Montaj Tipi

Through Hole, Right Angle

Uzunluk

33.02mm

Reach Svhc

No SVHC

Orientation

Right Angle

Radyasyon Dayanımı

No

Contact Length Post

0.130 3.30mm

Contact Type

Male Pin

Gender

Male

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

ECCN Kodu

EAR99

Insulation Height

0.365 9.27mm

Contact Materials

Phosphor Bronze

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Montaj

Through Hole
