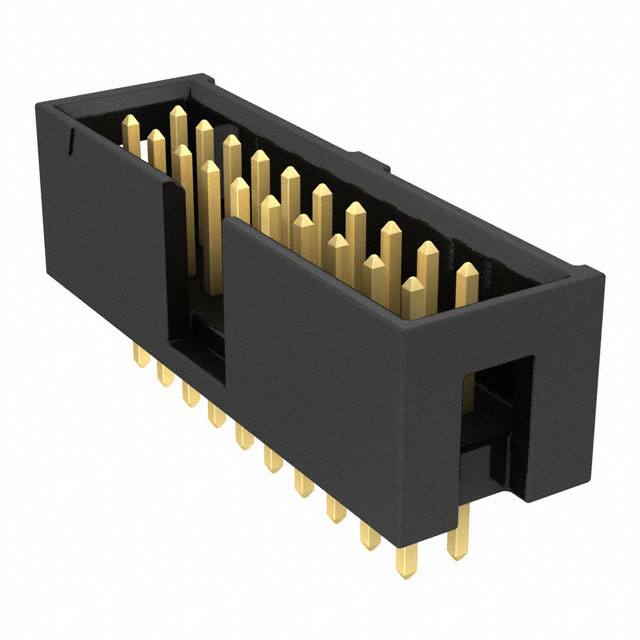

TST-110-02-G-D

Specifications

Insulation Height

0.350 8.89mm

Contact Materials

Phosphor Bronze

Style

Board to Cable/Wire

Plating Thickness

10μin

Ul Flammability Code

94V-0

Mating Contact Pitch

0.1 inch

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Reference Standard

UL, CSA

Number Of Positions Loaded

All

Mil Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Number Of Pcb Rows

2

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Shape

Square

Iec Conformance

NO

JESD-609 Kodu

e4

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Yayın Yılı

2003

Seri

Flex Stack, TST

Pitch Mating

0.100 2.54mm

Özellikler

Keying Slot

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Housing Material

Polyester

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

20

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Polarization Key

POLARIZED HOUSING

Ambalaj

Tube

Terminal

Solder
