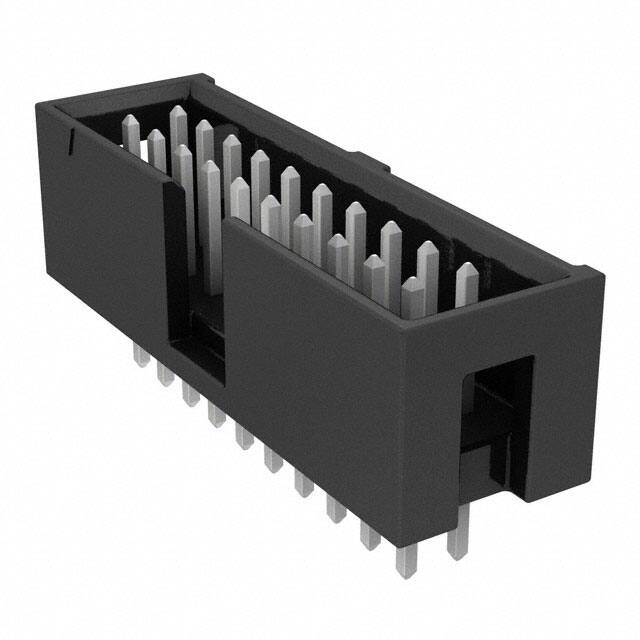

TST-110-01-T-D

Specifications

Fastening Type

Push-Pull

Contact Shape

Square

JESD-609 Kodu

e3

Iec Conformance

NO

Max Current Rating

3A

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Yayın Yılı

2003

Seri

Flex Stack, TST

Pitch Mating

0.100 2.54mm

Özellikler

Keying Slot

Insulation Height

0.350 8.89mm

Contact Materials

Phosphor Bronze

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Mating Contact Pitch

0.1 inch

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Reference Standard

UL

Number Of Positions Loaded

All

Mil Conformance

NO

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Depth

9.27mm

Body Breadth

0.365 inch

Shrouding

Shrouded - 4 Wall

Number Of Conductors

ONE

Contact Lengthmating

0.250 6.35mm

Overall Contact Length

0.480 12.19mm

Sıra Sayısı

2

Mixed Contacts

NO

Montaj Tipi

Through Hole

Uzunluk

33.02mm

Reach Svhc

No SVHC

Orientation

Straight

Contact Length Post

0.115 2.92mm

Radyasyon Dayanımı

No

Contact Type

Male Pin

Gender

Male
