Volume pricing
- 1+ pcs$3.46
- 10+ pcs$3.27
- 100+ pcs$3.08
- 500+ pcs$2.91
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

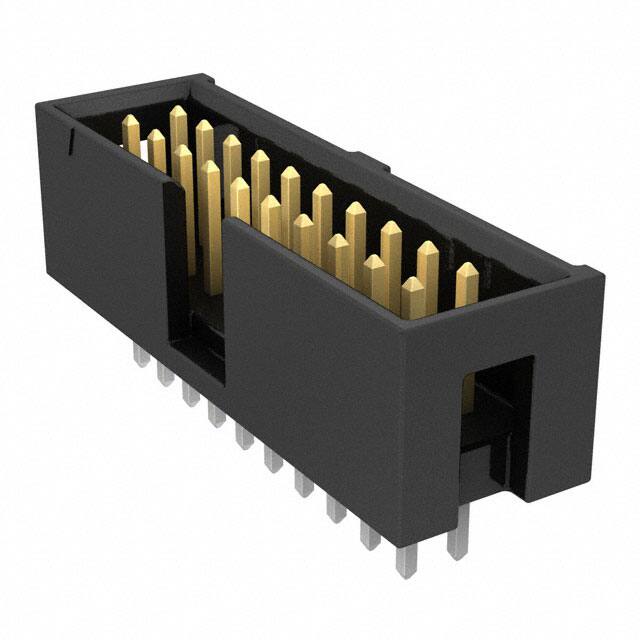

Specifications
- Contact Type
- Male Pin
- Orientation
- Straight
- Contact Length Post
- 0.115 2.92mm
- Radyasyon Dayanımı
- No
- ECCN Kodu
- EAR99
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish Post
- Tin
- Contact Lengthmating
- 0.250 6.35mm
- Overall Contact Length
- 0.480 12.19mm
- Shrouding
- Shrouded - 4 Wall
- Depth
- 9.27mm
- Body Breadth
- 0.365 inch
- Number Of Conductors
- ONE
- Uzunluk
- 33.02mm
- Sıra Sayısı
- 2
- Mixed Contacts
- NO
- Montaj Tipi
- Through Hole
- Ambalaj
- Tube
- Polarization Key
- CTR W/GUIDE SLOTS
- Housing Color
- Black
- Terminal
- Solder
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Materials
- Polybutylene Terephthalate (PBT), Glass Filled
- Option
- GENERAL PURPOSE
- Dielectric Withstanding Voltage
- 1400VAC V
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Din Conformance
- NO
- Pcb Contact Pattern
- RECTANGULAR
- Contact Finish Mating
- Gold
- Row Spacing Mating
- 0.100 (2.54mm)
- Connector Type
- Header
- Pozisyon Sayısı
- 20
- Housing Material
- Polyester
- Fabrika Tedarik Süresi
- 3 Weeks
- Material Flammability Rating
- UL94 V-0
- Çalışma Sıcaklığı
- -55°C~125°C
- Parça Durumu
- Active
- Yayın Yılı
- 2000
- Kurşunsuz Kodu
- yes
- Seri
- Flex Stack, TST
