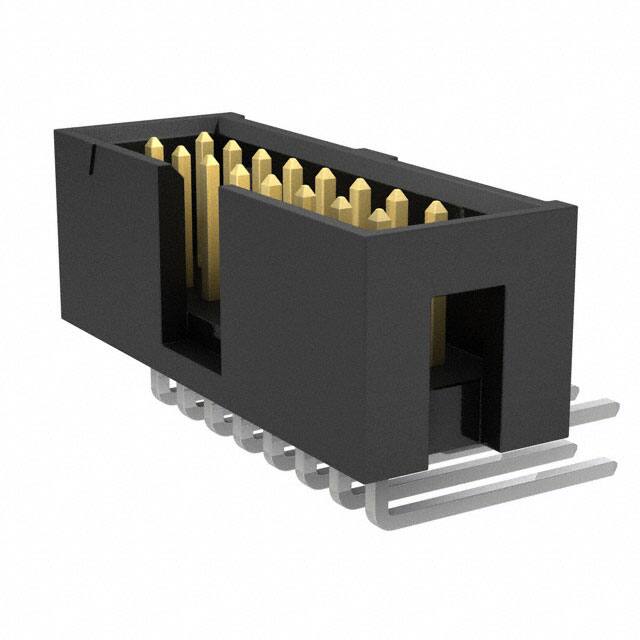

TST-108-04-S-D-RA

Specifications

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Pozisyon Sayısı

16

Housing Material

Polyester

Fabrika Tedarik Süresi

4 Weeks

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Insulation Resistance

5000000000Ohm

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Thickness Mating

30.0μin 0.76μm

Option

GENERAL PURPOSE

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Housing Color

Black

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Polarization Key

CTR W/GUIDE SLOTS

Mixed Contacts

NO

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Uzunluk

27.94mm

Number Of Conductors

ONE

Shrouding

Shrouded - 4 Wall

Depth

12.32mm

Body Breadth

0.365 inch

Contact Lengthmating

0.250 6.35mm

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Length Post

0.130 3.30mm

Orientation

Right Angle

Contact Type

Male Pin

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Ul Flammability Code

94V-0
