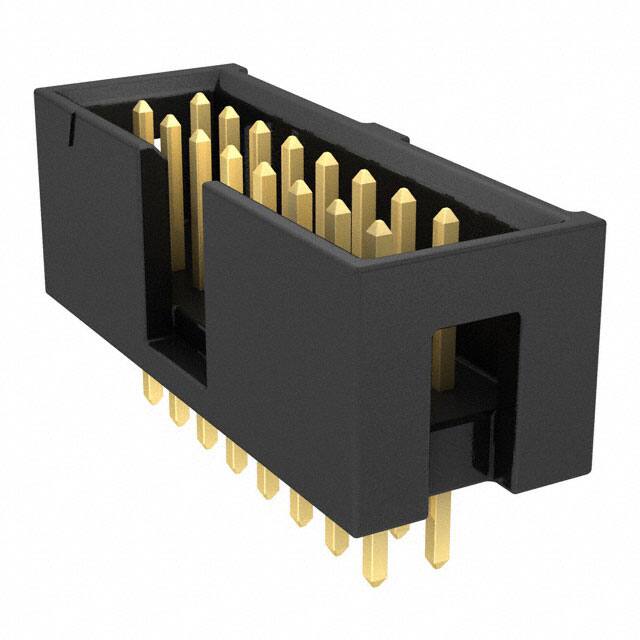

TST-108-01-G-D

Specifications

Fastening Type

Push-Pull

Contact Shape

Square

Iec Conformance

NO

JESD-609 Kodu

e4

Yayın Yılı

2000

Kurşunsuz Kodu

yes

Seri

Flex Stack, TST

Pitch Mating

0.100 2.54mm

Özellikler

Keying Slot

Insulation Height

0.350 8.89mm

Contact Materials

Phosphor Bronze

Ul Flammability Code

94V-0

Style

Board to Cable/Wire

Plating Thickness

10μin

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Montaj

Through Hole

Number Of Positions Loaded

All

Reference Standard

UL, CSA

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shrouding

Shrouded - 4 Wall

Depth

9.27mm

Body Breadth

0.365 inch

Number Of Conductors

ONE

Contact Lengthmating

0.250 6.35mm

Overall Contact Length

0.480 12.19mm

Sıra Sayısı

2

Montaj Tipi

Through Hole

Mixed Contacts

NO

Uzunluk

27.94mm

Reach Svhc

No SVHC

Orientation

Straight

Contact Length Post

0.115 2.92mm

Contact Type

Male Pin
