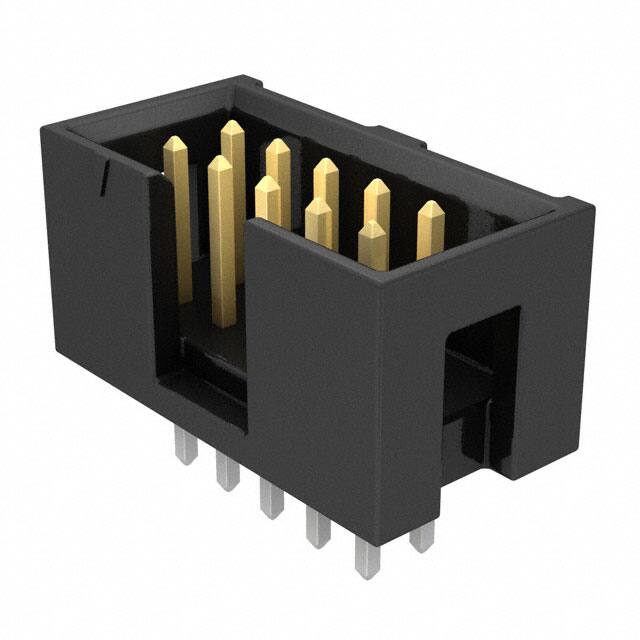

TST-105-02-L-D

Specifications

Insulation Height

0.350 8.89mm

Contact Materials

Phosphor Bronze

Mating Contact Pitch

0.1 inch

Current Rating Amps

3.4A per Contact

Filter Feature

NO

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Reference Standard

UL

Number Of Positions Loaded

All

Mil Conformance

NO

Reliability

COMMERCIAL

Number Of Pcb Rows

2

Fastening Type

Push-Pull

Contact Shape

Square

JESD-609 Kodu

e3

Iec Conformance

NO

Mounting Option1

LOCKING

Seri

Flex Stack, TST

Kurşunsuz Kodu

yes

Yayın Yılı

2003

Özellikler

Keying Slot

Pitch Mating

0.100 2.54mm

Connector Type

Header

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Insulation Color

Black

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polyester

Pozisyon Sayısı

10

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Ambalaj

Bulk

Insulation Resistance

5000000000Ohm

Contact Finish Thickness Mating

10.0μin 0.25μm
