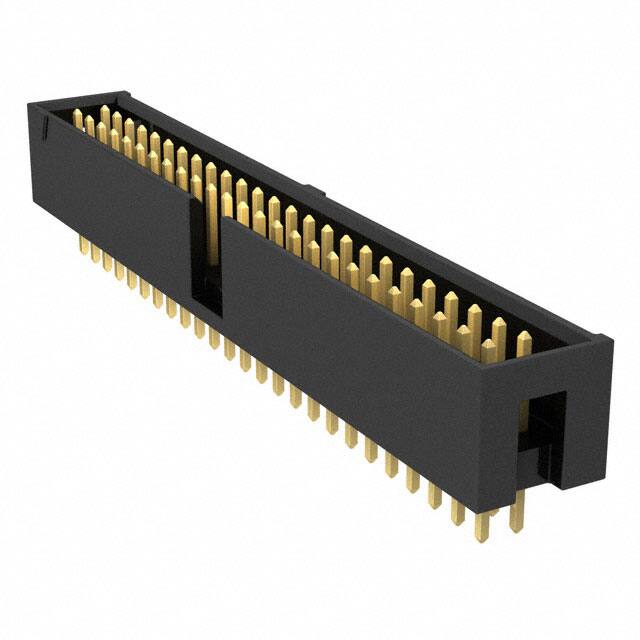

TSS-125-01-G-D

Specifications

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Gender

Male

Insulation Height

0.350 8.89mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Row Spacing Mating

0.100 (2.54mm)

Terminal

Solder

Seri

Flex Stack, TSS

Contact Type

Male Pin

Housing Material

Polyester

JESD-609 Kodu

e4

Style

Board to Board or Cable

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Shape

Square

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Contact Finish Thickness Post

3.00μin 0.076μm

Reach Svhc

No SVHC

Connector Type

Header

Iec Conformance

NO

Number Of Positions Loaded

All

Current Rating Amps

3A

Fabrika Tedarik Süresi

3 Weeks

Mixed Contacts

NO

Pozisyon Sayısı

50

Mil Conformance

NO

Overall Contact Length

0.480 12.19mm

Contact Lengthmating

0.250 6.35mm

Uzunluk

67.31mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Length Post

0.115 2.92mm

Fastening Type

Push-Pull

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Montaj Tipi

Through Hole
