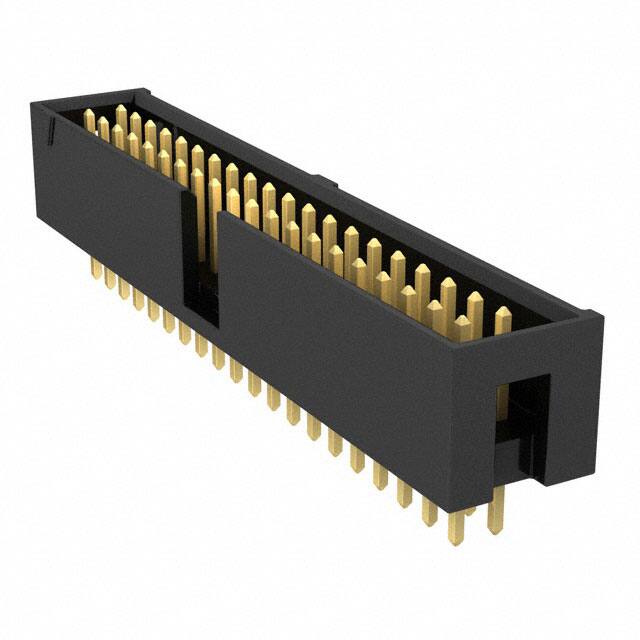

TSS-120-01-G-D

Specifications

Parça Durumu

Active

Ambalaj

Bulk

Filter Feature

NO

Özellikler

Keying Slot

Depth

9.27mm

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Max Current Rating

3A

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Overall Contact Length

0.480 12.19mm

Contact Lengthmating

0.250 6.35mm

Mixed Contacts

NO

Pozisyon Sayısı

40

Contact Length Post

0.115 2.92mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fastening Type

Push-Pull

Uzunluk

54.61mm

Iec Conformance

NO

Connector Type

Header

Option

GENERAL PURPOSE

Reach Svhc

No SVHC

Contact Finish Thickness Post

3.00μin 0.076μm

Fabrika Tedarik Süresi

4 Weeks

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Style

Board to Board or Cable

Din Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Yükseklik

9.27mm

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Montaj

Through Hole

Contact Shape

Square

Terminal

Solder
