Volume pricing
- 1+ pcs$3.90
- 10+ pcs$3.68
- 100+ pcs$3.47
- 500+ pcs$3.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

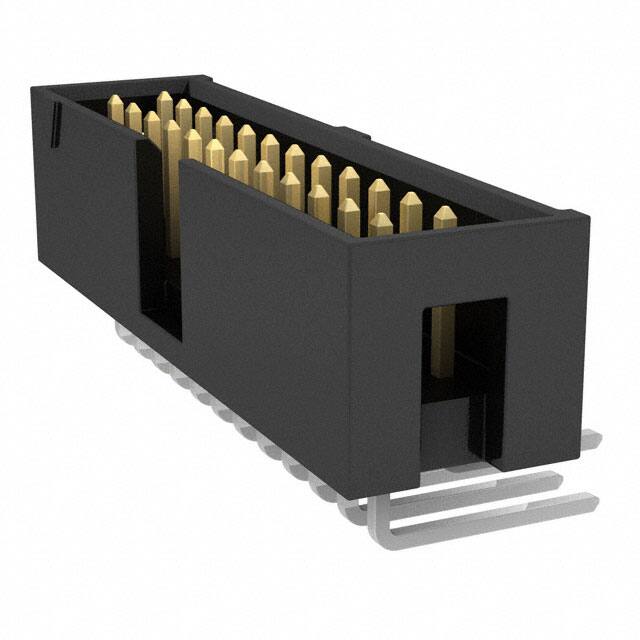

Specifications
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Male
- Orientation
- Right Angle
- Radyasyon Dayanımı
- No
- Insulation Height
- 0.365 9.27mm
- Ul Flammability Code
- 94V-0
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- ECCN Kodu
- EAR99
- Row Spacing Mating
- 0.100 (2.54mm)
- Contact Type
- Male Pin
- Seri
- Flex Stack, TSS
- Terminal
- Solder
- Housing Material
- Polyester
- Contact Finish Post
- Tin
- Din Conformance
- NO
- Style
- Board to Board or Cable
- Pitch Mating
- 0.100 2.54mm
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Contact Shape
- Square
- Contact Finish Mating
- Gold
- Contact Materials
- Phosphor Bronze
- Çalışma Sıcaklığı
- -55°C~125°C
- Reach Svhc
- No SVHC
- Option
- GENERAL PURPOSE
- Connector Type
- Header
- Iec Conformance
- NO
- Additional Feature
- POLARIZED, SHROUDED
- Number Of Positions Loaded
- All
- Fabrika Tedarik Süresi
- 3 Weeks
- Current Rating Amps
- 3A
- Mixed Contacts
- NO
- Pozisyon Sayısı
- 24
- Contact Lengthmating
- 0.250 6.35mm
- Mil Conformance
- NO
- Uzunluk
- 34.29mm
- Fastening Type
- Push-Pull
- Contact Length Post
- 0.130 3.30mm
- HTS Kodu
- 8536.69.40.40
- Shrouding
- Shrouded - 4 Wall
- Sıra Sayısı
- 2
