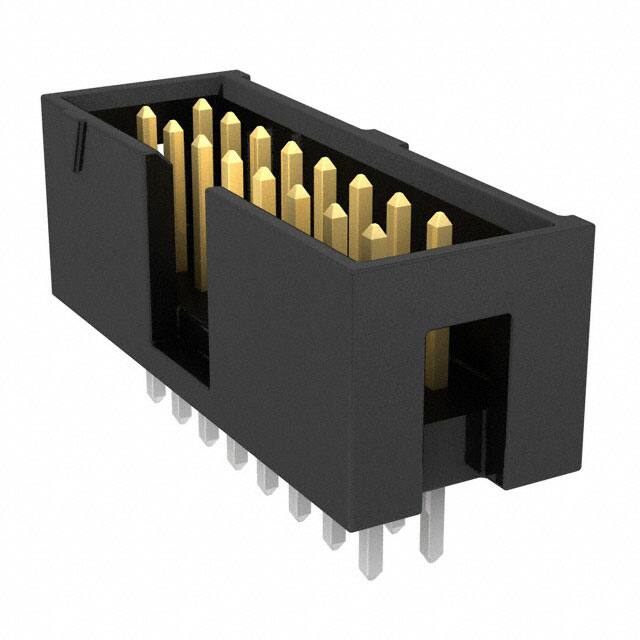

TSS-108-01-L-D

Specifications

Connector Type

Header

Iec Conformance

NO

Polarization Key

POLARIZED HOUSING

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Current Rating Amps

3A

Number Of Positions Loaded

All

Contact Finish Thickness Mating

10.0μin 0.25μm

Pitch Mating

0.100 2.54mm

Style

Board to Board or Cable

Din Conformance

NO

Contact Finish Post

Tin

Çalışma Sıcaklığı

-55°C~125°C

Mounting Option1

LOCKING

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Contact Shape

Square

Terminal

Solder

Seri

Flex Stack, TSS

Contact Type

Male Pin

Row Spacing Mating

0.100 (2.54mm)

Housing Material

Polyester

Insulation Resistance

5000000000Ohm

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1400VAC V

Radyasyon Dayanımı

No

Insulation Height

0.350 8.89mm

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Gender

Male

Number Of Pcb Rows

2

Mating Contact Pitch

0.1 inch

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Filter Feature

NO

Parça Durumu

Active
