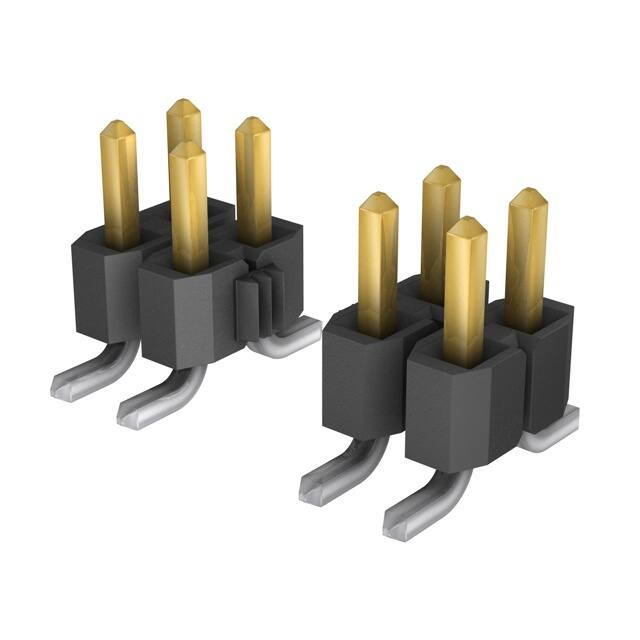

TSM-112-04-S-DV

Specifications

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Terminal

Solder

Number Of Pcb Rows

2

Reference Standard

UL

Pozisyon Sayısı

24

Seri

TSM

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.1 inch

Contact Shape

Square

Mixed Contacts

NO

Connector Type

Header

Contact Finish Thickness Mating

30.0μin 0.76μm

Number Of Positions Loaded

All

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Yayın Yılı

2012

Çalışma Sıcaklığı

-55°C~125°C

Iec Conformance

NO

Ambalaj

Tube

Number Of Conductors

ONE

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Phosphor Bronze

Insulation Color

Black

Montaj

Surface Mount

Kurşunsuz

Lead Free

Rated Current Signal

3A

Style

Board to Board or Cable

Din Conformance

NO

Fastening Type

Push-Pull

Insulation Height

0.100 2.54mm

Contact Type

Male Pin

Dielectric Withstanding Voltage

1000VAC V

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Sıra Sayısı

2

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Row Spacing

5.4864 mm

Fabrika Tedarik Süresi

3 Weeks
