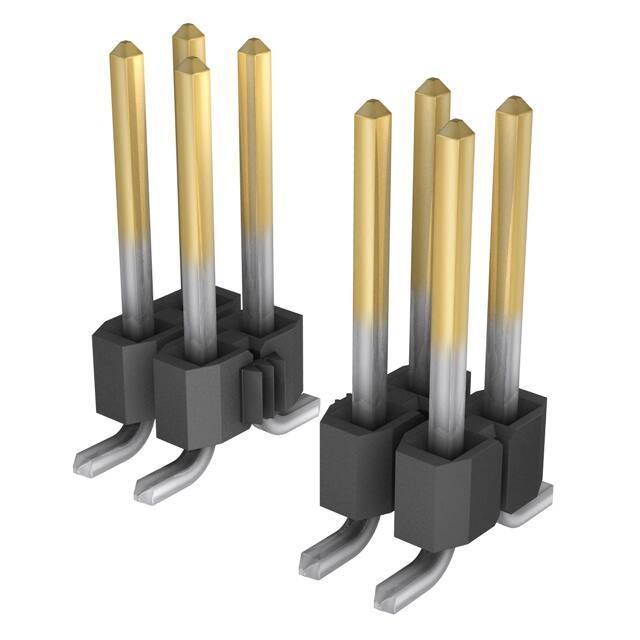

TSM-105-02-L-DV-P-TR

Specifications

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Orientation

Straight

Additional Feature

POLARIZED

Total Number Of Contacts

10

Contact Finish Thickness Mating

10.0μin 0.25μm

Reach Svhc

No SVHC

Insulation Height

0.100 2.54mm

Contact Finish Post

Tin

Özellikler

Pick and Place

RoHS Durumu

ROHS3 Compliant

Uzunluk

12.7mm

Contact Type

Male Pin

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Seri

TSM

Insulation Color

Black

Yayın Yılı

2015

Pozisyon Sayısı

10

Din Conformance

NO

Mixed Contacts

NO

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

Terminal

Solder

JESD-609 Kodu

e3

Reference Standard

UL

Filter Feature

NO

Reliability

COMMERCIAL

Mating Contact Pitch

0.1 inch

Depth

5.08mm

Contact Materials

Phosphor Bronze

Shrouding

Unshrouded

Gender

Male

Number Of Conductors

ONE

Contact Finish Mating

Gold

Housing Material

Polymer

Number Of Positions Loaded

All
