Volume pricing
- 1+ pcs$0.48
- 10+ pcs$0.45
- 100+ pcs$0.43
- 500+ pcs$0.40
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

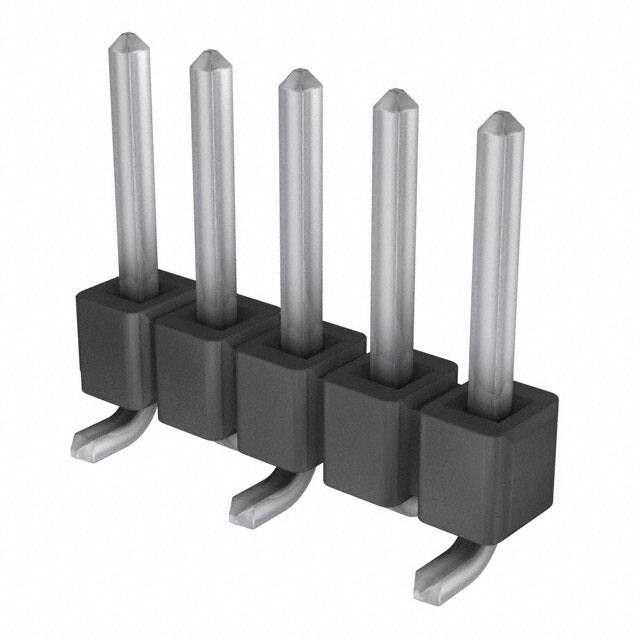

Specifications
- Reliability
- COMMERCIAL
- Filter Feature
- NO
- Ul Flammability Code
- 94V-0
- Reference Standard
- UL
- Gender
- Male
- Number Of Conductors
- ONE
- Contact Materials
- Phosphor Bronze
- Shrouding
- Unshrouded
- Depth
- 2.54mm
- Kurşunsuz
- Lead Free
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Montaj Tipi
- Surface Mount
- Sıra Sayısı
- 1
- Contact Shape
- Square
- Fastening Type
- Push-Pull
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Voltage Rating Ac
- 475V
- Ambalaj
- Tube
- Iec Conformance
- NO
- Contact Finish Mating
- Tin
- Housing Material
- Polymer
- Number Of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Lengthmating
- 0.230 5.84mm
- Parça Durumu
- Active
- Max Current Rating
- 7A
- Pcb Contact Pattern
- STAGGERED
- Çalışma Sıcaklığı
- -55°C~105°C
- Radyasyon Dayanımı
- No
- Mil Conformance
- NO
- Reach Svhc
- No SVHC
- Insulation Height
- 0.100 2.54mm
- Orientation
- Vertical
- Additional Feature
- E.L.P.
- Total Number Of Contacts
- 5
- Option
- GENERAL PURPOSE
- Housing Color
- Black
- Mounting Option1
- LOCKING
- Kurşunsuz Kodu
- yes
- Contact Type
- Male Pin
